Bin Activators, Bin Discharger, Silo Discharger

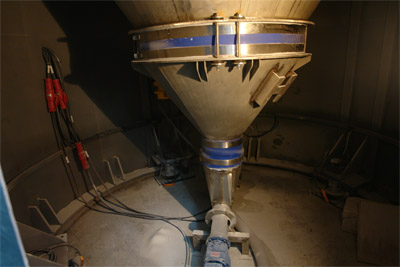

Today, the most effective bin activator designs incorporate the use
of an internal cone-shaped baffle which is rigidly attached to the
body of the bin activator by means of rugged structural tubular
members. The entire bin activator unit moves horizontally in
response to centrifugal forces generated by the unbalanced weights
of an attached vibrator.
Material flows smoothly around the primary baffle and when it narrows down and squeezes its way toward the outlet, the secondary baffle prevents it from compacting and jamming. Flow through the outlet is constant and upon demand. No need for cycling.. no need for excessively large outlets.
The cone baffle relieves the weight of the material from the lower section of the bin activator, and acts like a wedge as it moves beneath the material and pushes it in all areas adjacent to the cone's surfaces. This powerful force is also transmitted to the material in the upper portion of the bin as the motion is carried from particle to particle.
These moving particles cannot bridge or rat-hole, and flow freely around the periphery of the baffle toward the outlet of the bin activator. If the outlet is large enough and there is no downstream equipment to impede the flow, positive discharge is accomplished.
All SULTAN MAKINA Bin Activators are fitted with
heavy duty, long life hanger arms and isolation bushes. These items
have been load tested by independent testing authorities and are
guaranteed to provide superior isolation.
